Vertical Semi Automatic Taping Machine SRM 0501 for SMD Tape and Reel Packaging

Vertical Semi Automatic Taping Machine SRM 0501 for SMD Tape and Reel Packaging

A vertical semi automatic taping machine is designed for electronic component packaging applications where operators still need direct control over loading and positioning, while the machine handles carrier tape movement, sealing and reel winding.

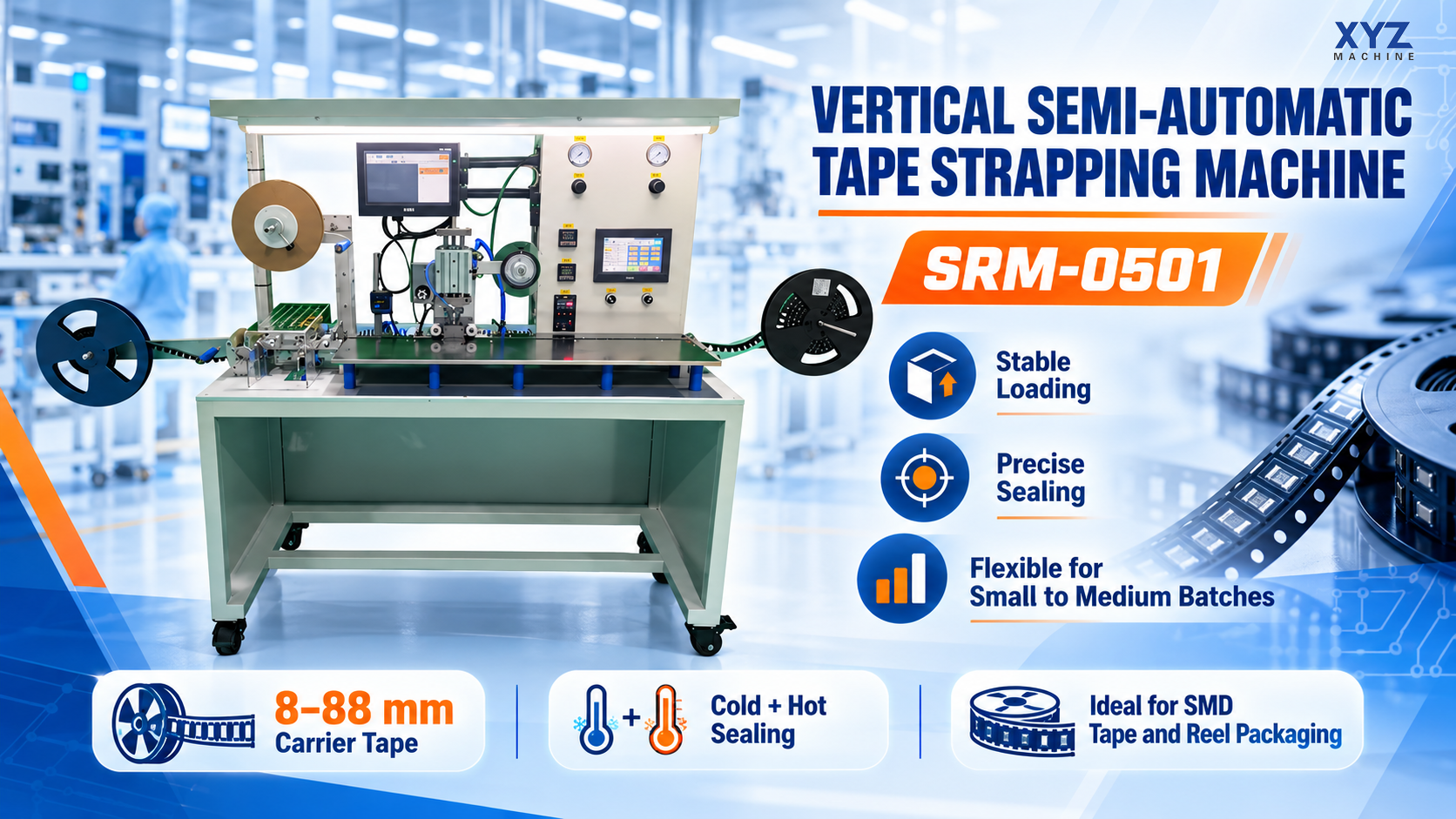

The XYZ SRM-0501 Vertical Semi-Automatic Taping Machine is developed for SMD tape and reel packaging in small and medium batch production, engineering samples, R&D work, OEM and EMS manufacturing, and projects where component types change frequently.

It supports 8 to 88 mm carrier tape and both hot sealing and cold sealing, giving manufacturers more flexibility when working with different components and packaging materials.

For production environments where full automation is not always necessary, the SRM-0501 provides a practical balance between operator control and process consistency.

What Is the SRM-0501 Vertical Semi Automatic Taping Machine

The SRM-0501 is a semi-automatic tape and reel machine used to package suitable electronic components into carrier tape and collect the finished tape onto reels. The operator remains involved in component loading and placement, while the machine supports the main packaging steps.

This operating method is useful when parts are difficult to feed automatically or when frequent product changes make a dedicated fully automatic machine less practical.

Why Semi Automatic Tape and Reel Packaging Still Matters

Fully automatic equipment is effective for high-volume production of stable, repeatable products. However, not every electronics manufacturer works under those conditions.

Many factories handle small batches, engineering samples, prototype production, different customer projects, frequent product changes and components that require visual checking.

For these applications, a semi automatic taping machine can provide greater flexibility. The operator keeps direct control of the component, while the machine provides more consistent carrier tape movement, sealing and reel winding than manual packaging alone.

This is particularly useful in high mix low volume production and engineering environments.

SRM-0501 Technical Data

These specifications are reference values. Final machine suitability depends on the actual component, carrier tape pocket, sealing material and production process.

8 to 88 mm Carrier Tape Range

One of the main characteristics of the SRM-0501 is its 8 to 88 mm carrier tape range. This allows the machine to cover different packaging formats, from smaller electronic components to larger connectors, terminals and other precision parts.

Carrier tape width alone, however, does not determine compatibility. The pocket must also match the actual component.

A properly designed carrier tape helps keep the component stable during sealing, storage, transport and downstream assembly.

Hot Sealing and Cold Sealing

The SRM-0501 supports both hot sealing and cold sealing. Different cover tape materials require different sealing methods.

This flexibility is useful when manufacturers process different carrier tape and cover tape combinations. The correct sealing parameters should be confirmed according to the actual packaging material.

What Components Can the SRM-0501 Package

Passive Components

Typical applications include resistors, capacitors, inductors and ferrite beads. These parts are commonly packed in tape and reel format for SMT assembly.

Semiconductors and Small IC Packages

Suitable applications may include diodes, transistors, MOSFETs and small QFN or DFN packages. For semiconductor parts, correct pocket fit and stable orientation are important for downstream pick and place.

LED and Optoelectronic Components

The SRM-0501 may also be used for LED beads, small LED chips and light sensors. These components often require careful positioning, making semi-automatic operation useful for selected applications.

Connectors and Metal Terminals

Micro connectors, contact pins, stamped terminals and switch components can be more difficult to automate because of their shape. Operator-assisted placement can make packaging easier when components require visual checking or controlled orientation.

Sensors and Precision Components

Hall sensors, MEMS devices and small mechanical parts may also be suitable if the carrier tape and placement process are properly matched.

Why the Vertical Layout Is Useful

The vertical operating structure gives the operator a clear view of the packaging area. This makes it easier to observe component placement, carrier tape movement and sealing conditions during operation.

For low-volume, irregular or changing products, this visibility can simplify setup and changeover. The operator can also respond more quickly when a component requires manual adjustment.

This is one of the reasons why a vertical semi-automatic machine can be useful in engineering and mixed-production environments.

SRM-0501 for Small and Medium Batch Production

The SRM-0501 is particularly suitable for production environments where batch sizes are not large enough to justify a dedicated fully automatic line.

This makes the machine relevant for manufacturers that need flexibility more than maximum speed.

SRM-0501 for OEM and EMS Manufacturing

OEM and EMS factories often work with multiple products and customer projects. A packaging line may need to switch between different components during the same production period.

In these environments, a semi automatic tape and reel machine can provide a practical solution. It allows the operator to manage different parts while maintaining a more consistent packaging process.

The SRM-0501 can therefore be useful for OEM factories, EMS manufacturers, component suppliers, R&D departments, prototype production teams and tape and reel service providers.

Semi Automatic Taping Machine vs Fully Automatic Taping Machine

A fully automatic machine is generally more suitable for stable high-volume production. A semi-automatic machine is often a better choice when product variety, operator control and changeover flexibility matter more.

When Should You Choose the SRM-0501

The SRM-0501 may be a suitable choice if different components need to be packaged on the same machine, batch sizes are small or medium, engineering samples need tape and reel packaging, components require manual positioning, product changeovers happen frequently, hot and cold sealing are both required, or carrier tape widths vary between projects.

For stable large-volume production, a fully automatic taping machine may be more appropriate. The right choice depends on actual production requirements.

What Information Is Needed Before Machine Selection

For non-standard parts, physical samples are particularly useful.

Why Carrier Tape Pocket Design Matters

A reliable tape and reel process depends on more than the machine itself. Carrier tape pocket design is equally important.

If the pocket is too large, the component may move or rotate. If the pocket is too small, placement can become difficult.

For this reason, XYZ Tape Reel recommends matching the carrier tape to the actual component.

XYZ Tape Reel Packaging Solutions

XYZ Tape Reel provides equipment and supporting solutions for electronic component tape and reel packaging.

The SRM-0501 fits into this portfolio as a flexible solution for manufacturers that need more direct control during small and medium batch production.

Frequently Asked Questions

What is the SRM-0501

The SRM-0501 is a vertical semi-automatic taping machine designed for SMD and electronic component tape and reel packaging.

What carrier tape width does it support

The reference carrier tape width is 8 to 88 mm. Actual compatibility also depends on the component and carrier tape pocket design.

Does the SRM-0501 support hot sealing

Yes. The machine supports both hot sealing and cold sealing.

Is it suitable for small batch production

Yes. The SRM-0501 is particularly suitable for small and medium batch production, engineering samples, pilot production and mixed product runs.

Can it package connectors and metal terminals

Potentially yes. These applications depend on component geometry, required orientation and carrier tape design.

Is it suitable for OEM and EMS factories

Yes. OEM and EMS manufacturers can use semi-automatic equipment when product variety and frequent changeovers make flexible packaging more important than maximum automation.

What is the difference between semi automatic and fully automatic taping machines

Semi-automatic machines involve more operator participation and usually provide greater flexibility for small batches and changing components. Fully automatic systems are better suited to stable high-volume production.

A Practical Tape and Reel Solution for Flexible Production

The XYZ SRM-0501 Vertical Semi-Automatic Taping Machine is designed for manufacturers that need a flexible and practical way to package electronic components into carrier tape.

With support for 8 to 88 mm carrier tape, hot and cold sealing, and operator-assisted placement, it is well suited to small and medium batches, OEM and EMS production, R&D work and frequently changing component types.

The right tape and reel machine should not be selected by speed alone. Component shape, carrier tape design, sealing method, batch size and production workflow all affect the final result.

XYZ Tape Reel develops packaging solutions around real component and production requirements.

For application evaluation, provide your component drawing, photos, carrier tape information, required orientation and expected production volume.
