INTRODUCTION
Flexible vibration feeding and vision-assisted positioning place suitable loose components into carrier- tape pockets, followed by cover-tape sealing and winding.

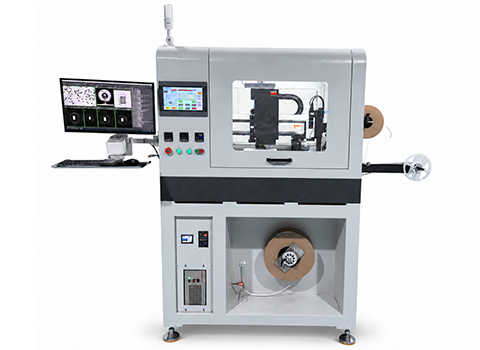

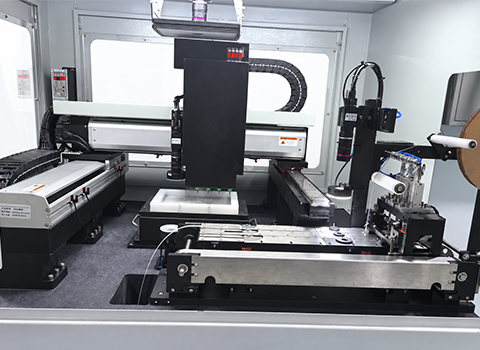

The FM-02V2 combines flexible vibration feeding, vision-assisted positioning and four-nozzle module transfer for suitable loose components. Parts are placed into carrier-tape pockets, followed by cover-tape sealing and reel winding.
Recipes and mechanical settings are matched to the component and carrier tape. Feeding, orientation recognition, pocket fit and achievable output are assessed with the actual samples.
These are proposal reference ranges, not a compatibility or acceptance guarantee for every component. Confirm dimensions, weight, tracks and power against the final configuration. 0402 and smaller, sticky, transparent, highly reflective or easily bent-lead components require separate review.
Send a dimensioned drawing, front/back photos, orientation requirements, carrier/cover-tape drawings and expected volume. Chinese, English and Russian documentation is available; document language does not establish the actual machine interface language.
APPLICATION
The FM-02V2 Flexible-Feeding Automatic Tape-and-Reel Machine is designed for suitable loose electronic components that require automated feeding, orientation recognition, placement into carrier tape, sealing, and reel winding.
Typical applications include components that can be reliably separated by flexible vibration feeding and identified by the vision system before transfer. The four-nozzle module then places qualified parts into matched carrier-tape pockets for subsequent cover-tape sealing and rewinding.
Because component geometry, surface characteristics, orientation, thickness, and carrier-tape pocket design can affect feeding and placement performance, the machine configuration should be evaluated with actual samples before final selection.
For application assessment, customers are recommended to provide:
- Component drawing
- Clear front and back photos
- Required packaging orientation
- Carrier tape specifications
- Pocket dimensions or packaging requirements
- Actual samples where possible
The FM-02V2 is suitable for customized tape-and-reel projects where feeding stability, vision recognition, pocket fit, and achievable output need to be confirmed according to the specific component.
