INTRODUCTION

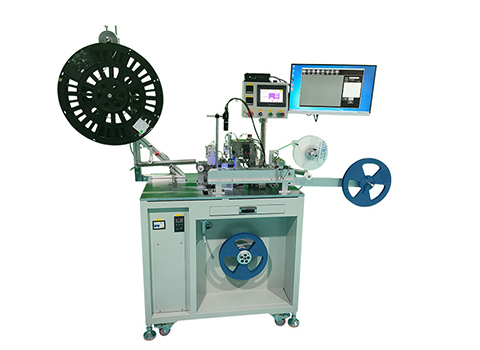

The tape and reel machine is a device that automatically loads bulk or tray/tube-packaged electronic components into carrier tape and seals them onto reels. Our company is a professional manufacturer of tape and reel machines, with a product line covering fully automatic, semi-automatic, and other models to meet different production capacity and budget requirements. The core functions of a tape and reel machine include: automatic feeding, component positioning and pickup, placement into the carrier tape cavity, tape sealing, and finished reel collection. Our tape and reel machines achieve a high-speed and precise packaging process through sophisticated mechanical structure and intelligent control.

TECHNICAL DATA

Parameter Name	Parameter Value
Model	CTR-400C
Packaging speed	4-8K pieces/hour
Applicable width of carrier tape	8~56mm
Machine weight	350KG
Material release method	Material tray group automatic
Material release method	Automatic unwinding and picking station for material tray group
Sealing method	Hot/Cold Sealing
Cutting method	Support customized cutting sizes, capable of variable pitch design
Power supply	AC220V, 1KVA
Gas source requirement	0.4~0.8MPa, standard is 0.5MPa
Positioning accuracy	+ 0.03mm
Repetition accuracy	+ 0.03mm

APPLICATION

Our automatic taping machines serve a broad spectrum of industries where reliable, high-speed SMD packaging is critical:

•Consumer Electronics

Package components for smartphones, laptops, wearables, and home appliances with precision and speed. Ensure flawless feeding into high-speed pick-and-place systems while protecting delicate parts from damage or contamination.

•Automotive Electronics

Meet stringent quality standards with heat-resistant carrier tapes and anti-static materials. Our machines support packaging for ECUs, sensors, and power modules, with traceability features for IATF 16949 compliance.

•Industrial Control & Power Devices

Handle larger or irregularly shaped components—such as connectors, relays, and transformers—using customizable cavity designs and reinforced tape options. Ideal for medium-volume, high-mix production lines.

•Medical & Biotechnology

Package sensitive components for diagnostic equipment, implantable devices, and monitoring systems in cleanroom-compatible environments. Vision-guided systems prevent misorientation and ensure error-free packaging.

•LED & Semiconductor Packaging

Integrate with testing and sorting equipment for LED binning, IC testing, or wafer-level packaging. Achieve full automation from inspection to tape-and-reel with inline processing capabilities.
